Equipment List

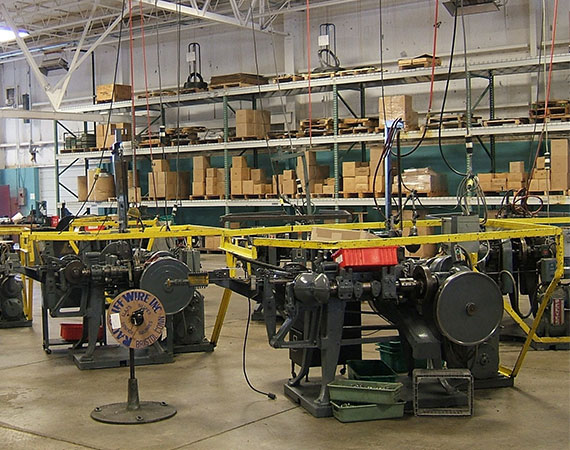

Four Slide spring clip bracket micro wire from West Michigan

Four Slide

Horizontal four-slide machinery is available in a range of sizes. Larger machines manufacture larger parts using the same basic forming principles.

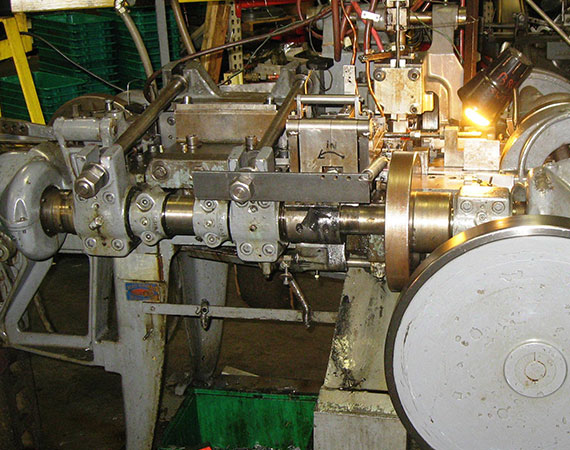

Horizontal Four Slides

Four-Slide Machine

Horizontal four-slide machinery is available in a range of sizes. Larger machines manufacture larger parts using the same basic forming principles.

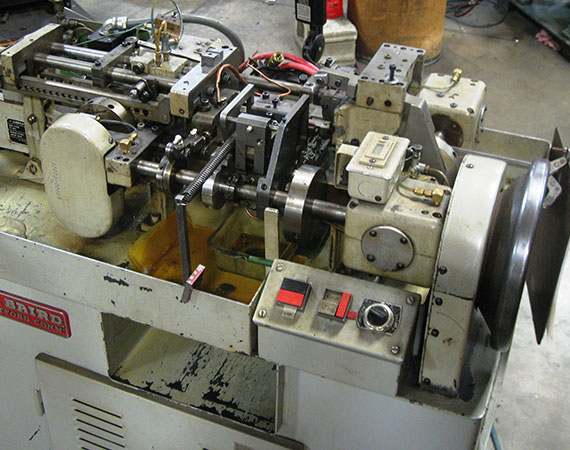

Double 00 custom micro parts

Double 00

Our Double 00 Four Slide is exceptional for small intricate parts.  Whether it be medical, aerospace, industrial, appliance, automotive or other, this machine is critical for the manufacture of minuscule components.

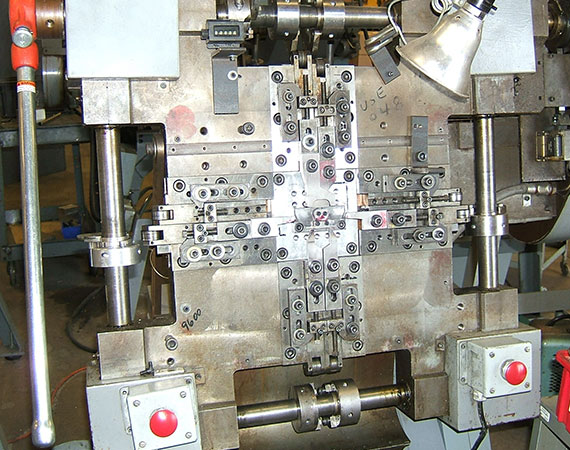

Eight Slide

Eight Slide

Most companies do not have this gem of a machine. Our Eight Slides are a versatile ally when secondary operations are required.

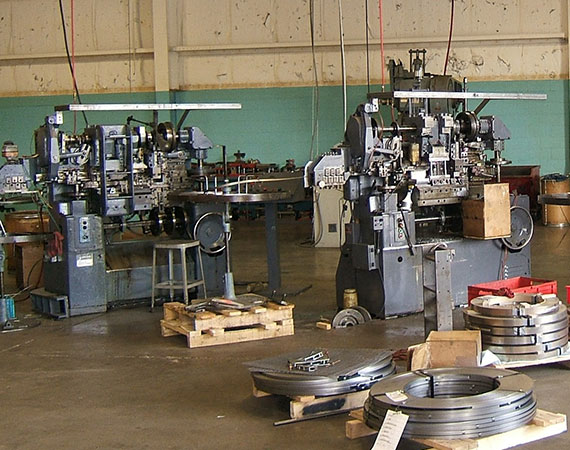

Three V82 Vertislides

Three V82 Vertislides

Vertical four-slides can produce a wide range of small metal parts utilizing the press head and forming slides. The vertical four-slide can also utilize forming motions off the bottom shaft, and rear motions that move through the center of the forming area.

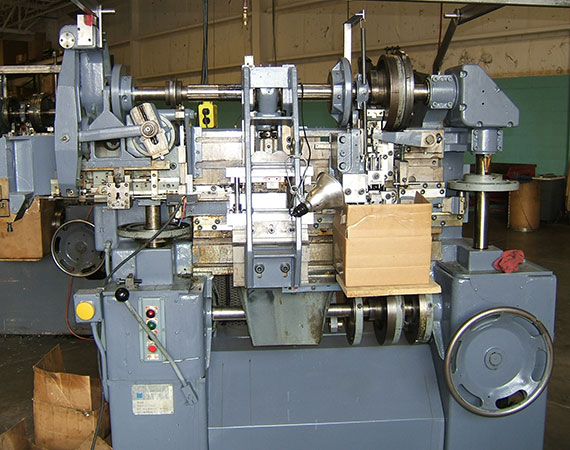

V82 Vertislide

V82 Vertislide

Vertical Four-Slide. Note the press head and forming area on the machine.

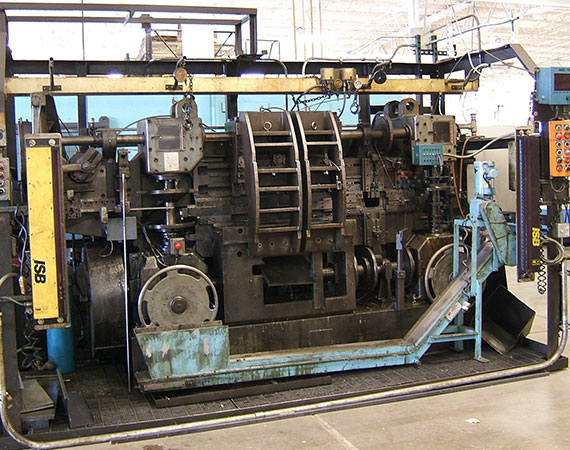

V83 Vertislide

V83 Vertislide

Having several V-83 Vertislides, our largest machine comes equipped with payoff reels, looping sensors, flattening mill, and metal conveyors to remove finished parts, as well as scrap materials, from the operational area of the machine. Two independent 30-ton press heads are available for cutting and punching prior to the strip being fed into the forming area.

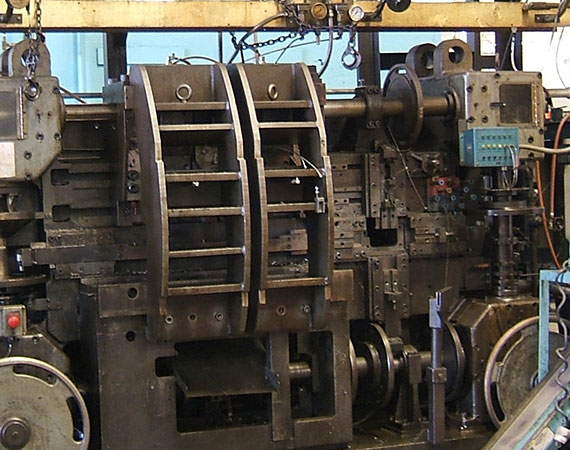

V83 Vertislide Press Area

V83 Vertislide Press Area

V83 Vertical Four-Slide. The V83 Verti-Slide has two independent 30-ton press heads available for cutting and punching prior to the strip being fed into the forming area.

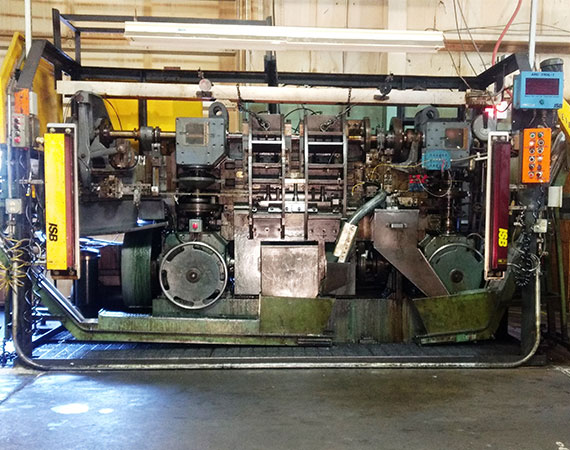

V83 Vertislide

V83 Vertislide

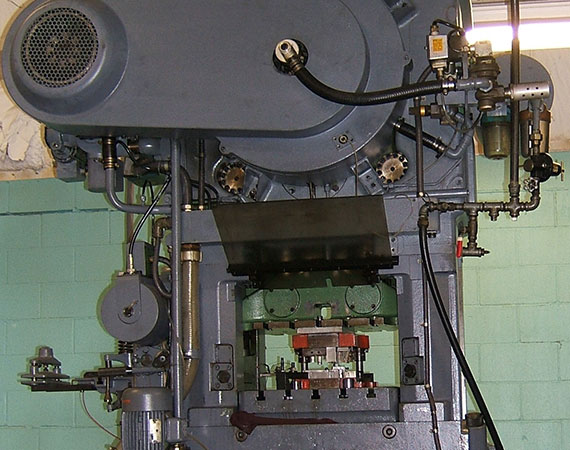

Bruderer Punch Press

Bruderer Punch Press

Bruderer 30-ton Punch Press. The Bruderer press is a high speed machine, capable of up to 90,000 strokes per hour.

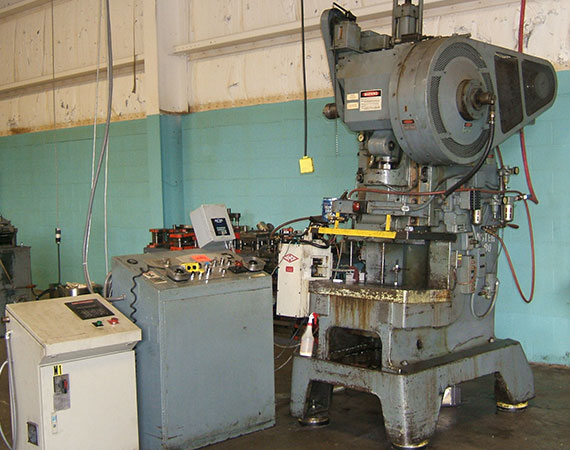

Minster 60 Ton Punch Press

Minster 60 Ton Punch Press

1-1/2 Stroke, 32 x 20 Bed, 50-400 SPM, 7-10 IN Shut Height
